Cameras

FPV Camera Systems

Engineered for Low Latency and Challenging Light Conditions

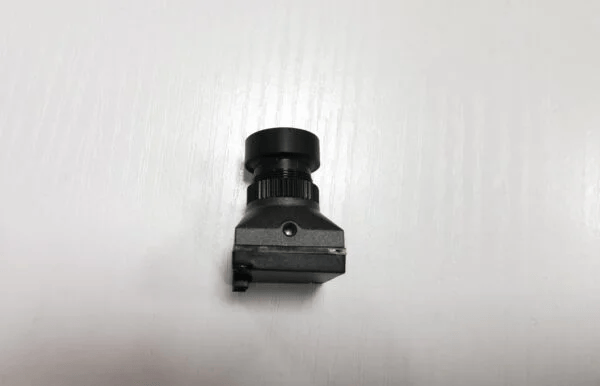

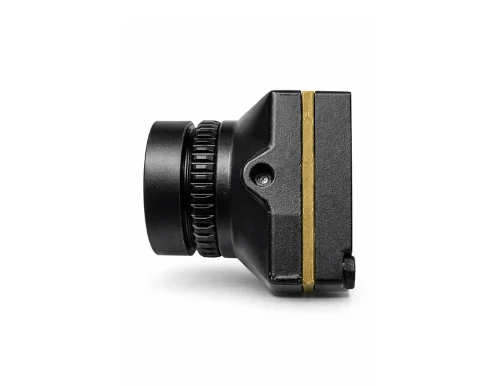

Wide FOV FPV Cameras

Wide field-of-view options for enhanced situational awareness
during close-range maneuvering.
Balanced distortion control with minimal latency.

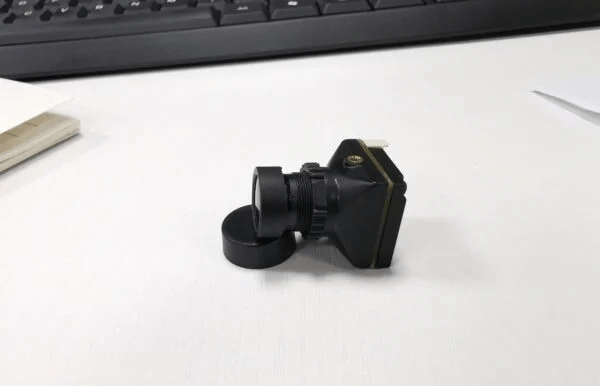

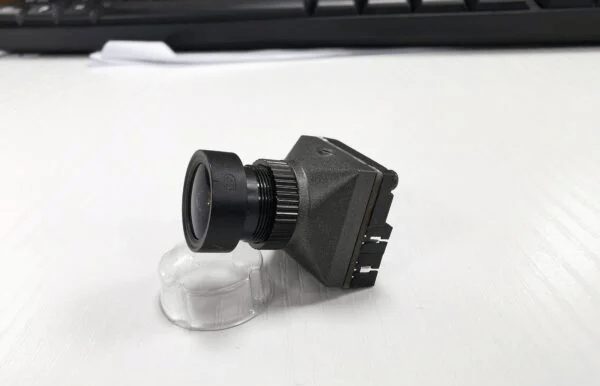

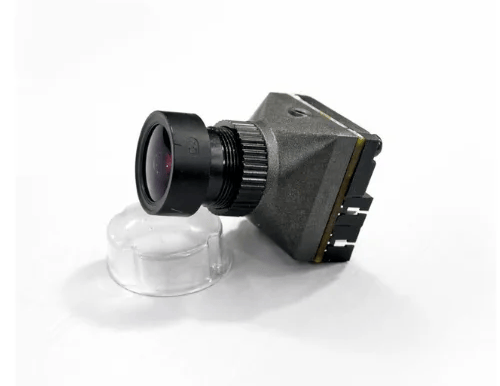

Low-Light FPV Cameras

Designed for low-light navigation and real-time control.
Optimized sensor selection and analog signal tuning
to maintain usable visibility under limited illumination.

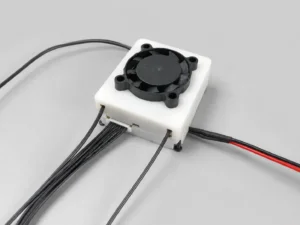

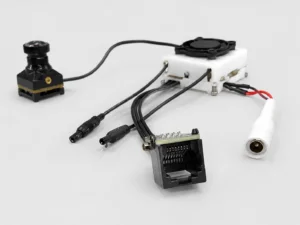

Digital Air Unit Series

1.0 — 2K

Designed for compact UAV video integration where 2K image clarity, real-time OSD workflow, and defined power input are required.

Compact 2K Air-Unit Configuration

• Resolution Modes: 2816×1584@60 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 140°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 20dBm
• Power: 10W
• Range: Open Link 25km; OpenAP Link 200–500m
• OSD: MSPOSD / MAVFWD

Built for UAV platforms that require higher image detail while keeping the same defined air-unit integration path.

Updated 2K configuration for UAV teams that need stronger RF output and repeatable video-chain deployment.

Flagship 4K configuration for field-ready UAV video integration requiring higher image detail, stronger RF output, and real-time OSD support.

4K Air-Unit Configuration

• Resolution Modes: 4K@30 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 160°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 20dBm
• Power: 10W
• Range: Open Link 25km; OpenAP Link 200–500m
• OSD: MSPOSD / MAVFWD

Enhanced 2K Air-Unit Configuration

• Resolution Modes: 2816×1584@60 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 140°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 29dBm
• Power: 15W
• Range: Open Link 45km; OpenAP Link 200–1000m
• OSD: MSPOSD / MAVFWD

Flagship 4K Air-Unit Configuration

• Resolution Modes: 4K@30 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 160°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 29dBm
• Power: 15W
• Range: Open Link 45km; OpenAP Link 200–1000m
• OSD: MSPOSD / MAVFWD
